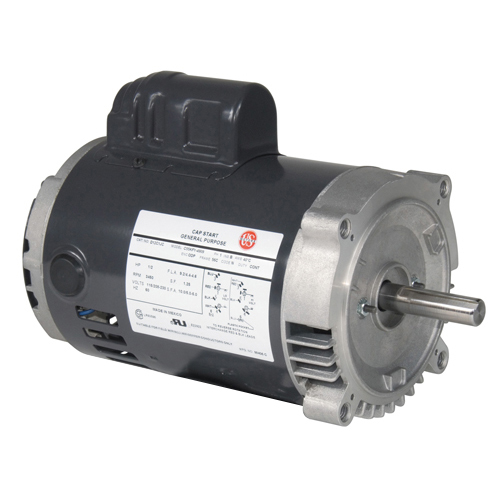

D32CP2PCR - 1.5 HP - ODP - 1725 RPM
Catalog #: D32CP2PCR
Model #:T063CRM2197012B
![](https://mc08e511869d7d4a108a39d.blob.core.windows.net/commerce-photos/203-766-767.jpg)
Details
General Purpose
Single Phase
Open Dripproof (ODP)
Capacitor Start
C Face Footless
Discount Symbol:
DS-3FMP
Unit Weight:
37.0
lbs
List Price Per Unit:
$693.00
- Specifications
- Technical Data
Model_Number
T063CRM2197012B
PRODUCT NAME
1.5 HP - ODP - 1725
PHASETYPE
1_CAPACITOR START -
MOTOR ENCLOSURE
ODP
HORSEPOWER
1.5
KILOWATTS
1.1
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115/230 V
VOLTS
115
VOLTS 2
230
FRME
56
SHAFT CODE
H
STATOR DIAMETER
6.3
STACK
3.75
MOUNTING
NONE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
CW/CCW
SERVICE FACTOR
1.15
RUNCAPMFD
65
RUNCAPVOLTS
240
STARTCAPMFD
649
SHIPPING WEIGHT
37
THERMAL PROTECTION
NONE
BREAKDOWN TORQUE
196.6
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
270
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
J
LOCKED ROTOR AMPS
85.86
NEMA NOMINAL EFFICIENCY
83.8
FULL LOAD AMPS PRIMARY
13.4/6.7
SERVICE FACTOR AMPS PRIMARY
14.6/7.3
T063CRM2197012B
FHPO
V02804547
D04761813
