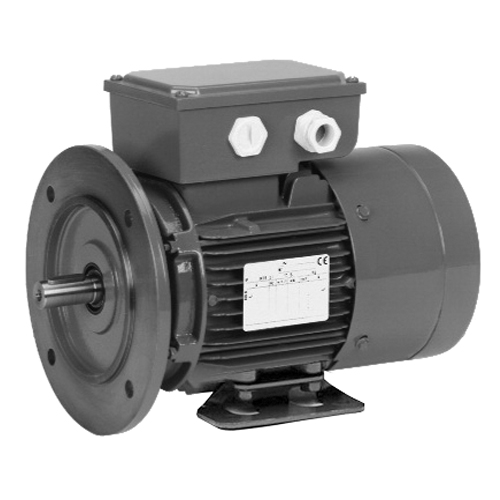

BR3S2A3 - 3 HP - TEFC - 1735 RPM

Catalog #: BR3S2A3
Model #:4BRC3T

Details

Definite Purpose
Totally Enclosed Fan Cooled (TEFC) Motor
FCR Series
Brakemotor
Footed
Discount Symbol:
DS-3LS
Unit Weight:
60.0
lbs
List Price Per Unit:
$2,600.00
  • Specifications
  • Technical Data
Model_Number
4BRC3T
PRODUCT NAME
3 HP - TEFC - 1735
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
3
KILOWATTS
2.2
POLES
4
NUMBER SPEEDS
1
RPM
1735
RPM 2
1735
RPM 3
1735
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
208-230/460
VOLTS
460
VOLTS 2
230
VOLTS 3
208
VOLTS 4
400
FRME
182
SHAFT CODE
T
MOUNTING
FOOTED
ASSEMBLY POSITION
F-0
MOTOR TYPE
BRFCR
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
60
BREAKDOWN TORQUE
300.564
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
270
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
LOCKED ROTOR AMPS
29
NEMA NOMINAL EFFICIENCY
78.8
FULL LOAD AMPS PRIMARY
9.3-9.0/4.5
