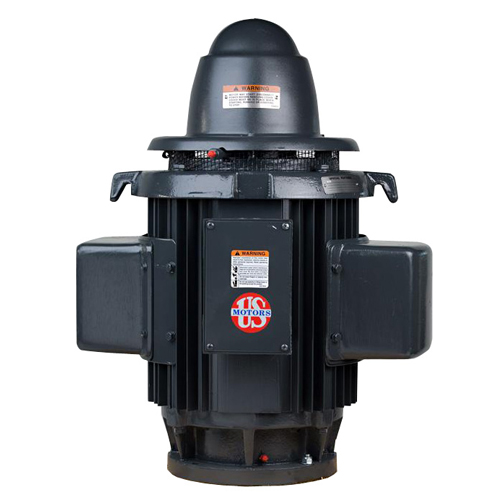

HS5C2KLE - 5 HP - WPI - 1775 RPM

Catalog #: HS5C2KLE
Model #:7199

Details

Vertical Motors
Single Phase Weather Protected Type I (WPI)
HOLLOSHAFT® High Thrust
Discount Symbol:
DS-7VS
Unit Weight:
265.0
lbs
List Price Per Unit:
$5,789.00
  • Specifications
  • Technical Data
Model_Number
7199
PRODUCT NAME
5 HP - WPI - 1775
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
WPI
HORSEPOWER
5
POLES
4
NUMBER SPEEDS
1
RPM
1775
HERTZ
60
VOLTS PRIMARY
230
VOLTS
230
FRME
254
SHAFT CODE
UP
MOUNTING
VERT
MOTOR TYPE
AUC
OPPOSITE END BEARING
6210-2Z-J/C3
SHAFT END BEARING
7310BEP
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
265
INSULATION CLASS
F
KVA CODE LETTER
G
FULL LOAD AMPS PRIMARY
28.5
7199
IHPO
09-1807
108324
