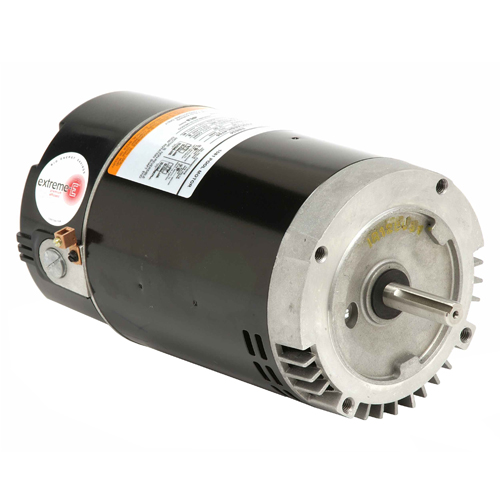

ASB2977 - 2.25 HP - ODP - 3450 RPM

Catalog #: ASB2977
Model #:B063ABT1038023J

Details

56 Frame Pool & Spa Motors
Switchless Design 6.5" Frame Diameter
C-Flange Category "J"
Premium Efficient
Full Service Factor Full Rated
Discount Symbol:
DS-FPS
Unit Weight:
31.0
lbs
List Price Per Unit:
$505.00
  • Specifications
  • Technical Data
Model_Number
B063ABT1038023J
PRODUCT NAME
2.25 HP - ODP - 3450
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ODP
HORSEPOWER
2.25
HORSEPOWER 2
0.3
POLES
2
POLES 2
4
NUMBER SPEEDS
2
RPM
3450
RPM 2
1725
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
56
SHAFT CODE
J
STATOR DIAMETER
6.3
STACK
2.875
MOUNTING
C-FACE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CW LEAD END
RUNCAPMFD
30
RUNCAPVOLTS
370
SHIPPING WEIGHT
31
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
101.2
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
9.584
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
G
LOCKED ROTOR AMPS
33.11
SERVICE FACTOR AMPS PRIMARY
9.2/2.1
B063ABT1038023J
FHPO
V02805934
D04801081
