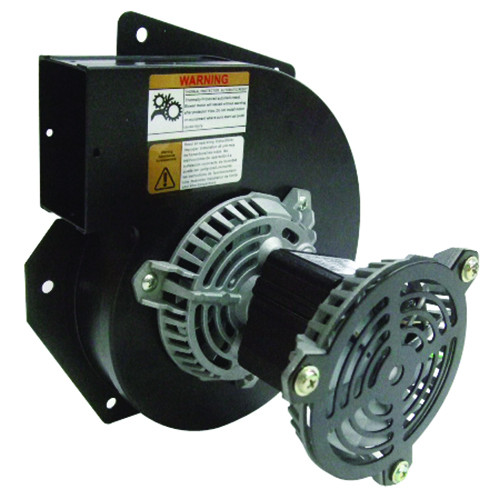

N143 - 1/30 HP - 120 V - 3000 RPM

Catalog #: N143
Model #:B1880441900000B

Details

Draft Inducer
Single Phase
PSC or Shaded pole design
Thermally Protected
Trane Replacement
Discount Symbol:
DS-IND
Unit Weight:
6.3
lbs
List Price Per Unit:
$198.00
  • Specifications
  • Technical Data
MODEL NUMBER
B1880441900000B
CATALOG NUMBER
N143
PHASE TYPE
1_SHADED POLE
MOTOR ENCLOSURE
OPEN
HORSEPOWER
1/30
POLES
2
NUMBER SPEEDS
1
RPM
3000
HERTZ
60
VOLTS PRIMARY
120
VOLTS
120
MOTOR TYPE
FHP
OPPOSITE END BEARING
Ball
SHAFT END BEARING
Ball
ROTATION
CWSE
SERVICE FACTOR
1
SHIPPING WEIGHT
6.28
THERMAL PROTECTION
AUTOMATIC RESET
INSULATION CLASS
B
FULL LOAD AMPS PRIMARY
1.3
CFM @ FREE AIR
93.45
Model_Number
B1880441900000B
PRODUCT NAME
.033 HP - - 3000
PHASETYPE
1_PHASE
VOLTS
120
STARTCAPMFD
N\A
B1880441900000B
FHPO
V02807918
