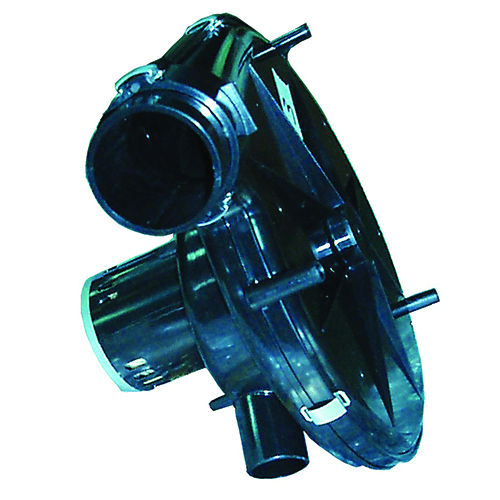

N173 - 1/25 HP - 115 V - 3350 RPM

Catalog #: N173
Model #:B1880442100000B

Details

Draft Inducer
Single Phase
PSC or Shaded pole design
Thermally Protected
ICP Replacement
Discount Symbol:
DS-IND
Unit Weight:
8.4
lbs
List Price Per Unit:
$472.00
  • Specifications
  • Technical Data
MODEL NUMBER
B1880442100000B
CATALOG NUMBER
N173
PHASE TYPE
1_PERM SPLIT CAP
MOTOR ENCLOSURE
ODP
HORSEPOWER
1/25
POLES
2
NUMBER SPEEDS
1
RPM
3350
HERTZ
60
VOLTS PRIMARY
115
VOLTS
115
MOTOR TYPE
FHP
OPPOSITE END BEARING
Ball
SHAFT END BEARING
Ball
ROTATION
CCWSE
SERVICE FACTOR
1
RUNCAPMFD
5uF
RUNCAPVOLTS
250VAC
SHIPPING WEIGHT
8.38
THERMAL PROTECTION
AUTOMATIC RESET
INSULATION CLASS
B
FULL LOAD AMPS PRIMARY
0.92
CFM @ FREE AIR
64.28
Model_Number
B1880442100000B
PRODUCT NAME
.04 HP - - 3350
PHASETYPE
1_PHASE
VOLTS
115
STARTCAPMFD
N\A
B1880442100000B
FHPO
V02807922
