N781 - 1/50 HP - 115 V - 3000 RPM

Catalog #: N781
Model #:B1880475800000B

Details

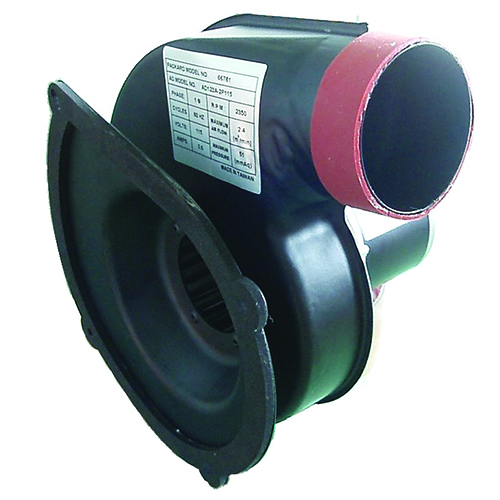

Draft Inducer
Single Phase
PSC or Shaded pole design
Thermally Protected
Rheem Replacement
Discount Symbol:
DS-IND
Unit Weight:
6.7
lbs
List Price Per Unit:
$281.00
  • Specifications
  • Technical Data
MODEL NUMBER
B1880475800000B
CATALOG NUMBER
N781
PHASE TYPE
1_PERM SPLIT CAP
MOTOR ENCLOSURE
ODP
HORSEPOWER
1/50
POLES
2
NUMBER SPEEDS
1
RPM
3000
HERTZ
60
VOLTS PRIMARY
115
VOLTS
115
MOTOR TYPE
FHP
OPPOSITE END BEARING
Ball
SHAFT END BEARING
Ball
ROTATION
CWSE
SERVICE FACTOR
1
RUNCAPMFD
3uF
RUNCAPVOLTS
250VAC
SHIPPING WEIGHT
6.7
THERMAL PROTECTION
AUTOMATIC RESET
INSULATION CLASS
B
FULL LOAD AMPS PRIMARY
0.6
CFM @ FREE AIR
85.66
Model_Number
B1880475800000B
PRODUCT NAME
.02 HP - - 3000
PHASETYPE
1_PHASE
VOLTS
115
STARTCAPMFD
N\A
B1880475800000B
FHPO
V02807919
