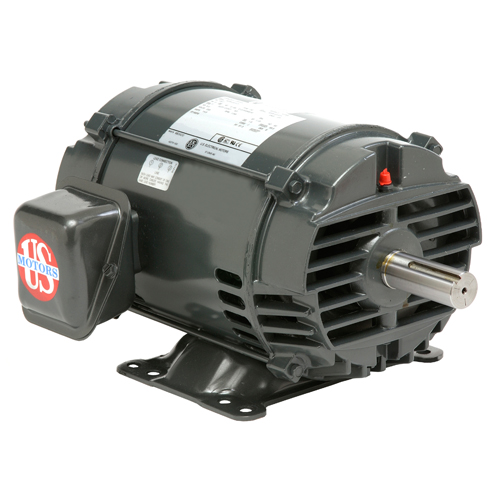

DH40S2GF - 40 HP - ODP - 1765 RPM

Catalog #: DH40S2GF
Model #:BW55

Details

Special Application
Three Phase Open Dripproof (ODP)
Elevator Motor
Dry Hydraulic Motor
Discount Symbol:
DS-3ID
Unit Weight:
250.0
lbs
List Price Per Unit:
$5,518.00
  • Specifications
  • Technical Data
Model_Number
BW55
PRODUCT NAME
40 HP - ODP - 1765
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
40
KILOWATTS
29.8
POLES
4
NUMBER SPEEDS
1
RPM
1765
HERTZ
60
VOLTS PRIMARY
575
VOLTS
575
FRME
286
SHAFT CODE
T
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
D
OPPOSITE END BEARING
6210-2Z-J/C3
SHAFT END BEARING
6310-2Z-J/C3
AMBIENT
40
SERVICE FACTOR
1
STARTCAPMFD
N\A
SHIPPING WEIGHT
250
BREAKDOWN TORQUE
203
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
164
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
E
LOCKED ROTOR AMPS
182
NEMA NOMINAL EFFICIENCY
90.2
FULL LOAD AMPS PRIMARY
39
BW55
IHPO
07-2198
011658
