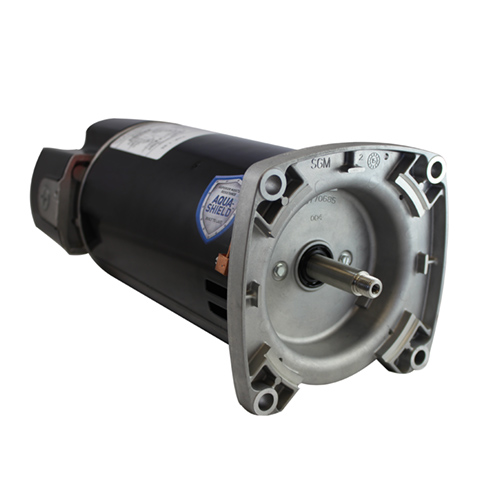

ASQ125 - 1.25 HP - ODP - 3450 RPM

Catalog #: ASQ125
Model #:C055KTN2127013J

Details

AQUA-SHIELD EZ48 Pool & Spa Motor
Switch Design 5.5" Frame Dia.
Square Flange Category "S"
Standard Efficient 1/2-20 Thread
THP Rated 1081 Design
Discount Symbol:
DS-FPS
Unit Weight:
21.0
lbs
List Price Per Unit:
$276.00
  • Specifications
  • Technical Data
Model_Number
C055KTN2127013J
PRODUCT NAME
1.25 HP - ODP - 3450
PHASETYPE
1_CAPACITOR START
MOTOR ENCLOSURE
ODP
HORSEPOWER
1.25
POLES
2
NUMBER SPEEDS
1
RPM
3450
HERTZ
60
VOLTS PRIMARY
230/115 V
VOLTS
230
VOLTS 2
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
3
MOUNTING
SQUARE FLANGE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CW LEAD END
STARTCAPMFD
198.45
SHIPPING WEIGHT
21
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
86.63
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
26.01
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
J
LOCKED ROTOR AMPS
37.27
FULL LOAD AMPS PRIMARY
7.0/14.0
C055KTN2127013J
FHPO
V02810802
D04825682
