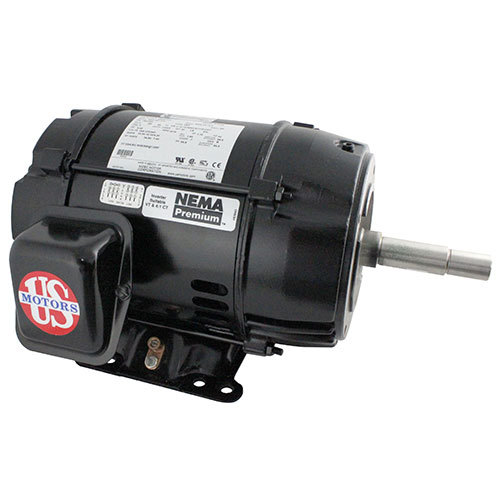

EEQ750 - 7.5 HP - DP - 3480 RPM

Catalog #: EEQ750
Model #:DA98

Details

Pentair "EQ" Pump Series Replacement
Pool & Spa
Special JMZ Mounting
Discount Symbol:
DS-FPS
Unit Weight:
139.0
lbs
List Price Per Unit:
$2,449.00
  • Specifications
  • Technical Data
Model_Number
DA98
PRODUCT NAME
7.5 HP - DP - 3480
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
DP
HORSEPOWER
7.5
POLES
2
NUMBER SPEEDS
1
RPM
3480
HERTZ
60
VOLTS PRIMARY
230
VOLTS
230
FRME
213
SHAFT CODE
JMZ
ASSEMBLY POSITION
F1
MOTOR TYPE
DM4
OPPOSITE END BEARING
6205-2Z-J/C3
SHAFT END BEARING
6309-2Z-J/C3
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
139
INSULATION CLASS
F
KVA CODE LETTER
G
NEMA NOMINAL EFFICIENCY
87
FULL LOAD AMPS PRIMARY
30.4
DA98
IHPO
0645553
