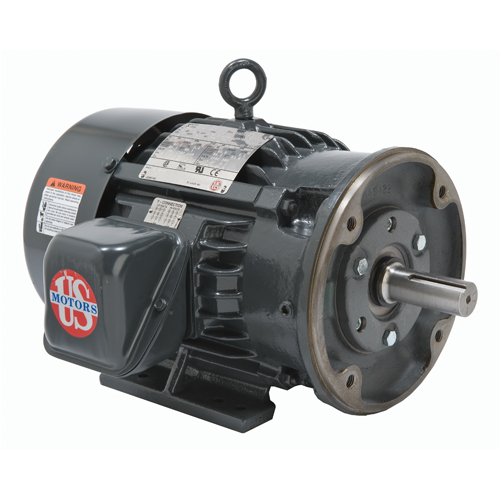

H3P3DC - 3 HP - TEFC - 1175 RPM

Catalog #: H3P3DC
Model #:DN99

Details

General Purpose
Three Phase Totally Enclosed Fan Cooled (TEFC)
HOSTILE DUTY™
Premium Efficient C Face
C Face
Discount Symbol:
DS-3HD
Unit Weight:
160.0
lbs
List Price Per Unit:
$1,150.00
  • Specifications
  • Technical Data
Model_Number
DN99
PRODUCT NAME
3 HP - TEFC - 1175
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
3
KILOWATTS
2.2
POLES
6
NUMBER SPEEDS
1
RPM
1175
RPM 2
1175
RPM 3
1170
RPM 4
970
RPM 5
970
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
208-230/460
VOLTS
460
VOLTS 2
230
VOLTS 3
208
VOLTS 4
380
VOLTS 5
190
FRME
213
SHAFT CODE
TC
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
CTE
OPPOSITE END BEARING
6208-2Z-J/C3
SHAFT END BEARING
6309-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
160
BREAKDOWN TORQUE
348
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
275
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
J
LOCKED ROTOR AMPS
30.6
NEMA NOMINAL EFFICIENCY
89.5
FULL LOAD AMPS PRIMARY
9.3-8.8/4.4
SERVICE FACTOR AMPS PRIMARY
10.4-9.7/4.9
DN99
IHPO
07-3192
109144
