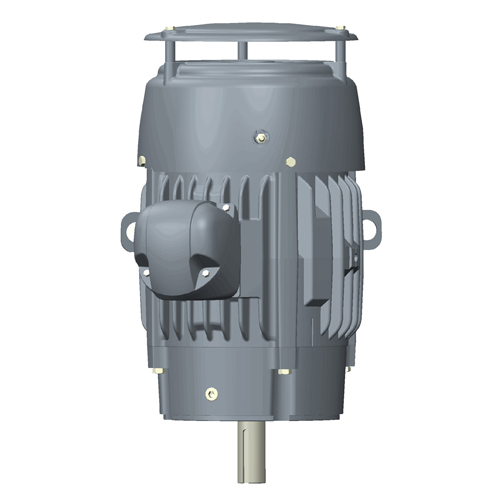

C40P1FSCR - 40 HP - TEFC - 3560 RPM

Catalog #: C40P1FSCR
Model #:DW88

Details

General Purpose
Three Phase Totally Enclosed Fan Cooled (TEFC)
CORRO-DUTY®
Premium Efficient
Vertical C Face
Discount Symbol:
DS-3CE
Unit Weight:
600.0
lbs
List Price Per Unit:
$5,824.00
  • Specifications
  • Technical Data
Model_Number
DW88
PRODUCT NAME
40 HP - TEFC - 3560
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
40
KILOWATTS
29.8
POLES
2
NUMBER SPEEDS
1
RPM
3560
RPM 4
2945
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
460
VOLTS
460
VOLTS 4
380
FRME
324
SHAFT CODE
TSC
MOUNTING
HORZ-FOOTLESS
ASSEMBLY POSITION
NA
MOTOR TYPE
TCEF
OPPOSITE END BEARING
6311-J/C3
SHAFT END BEARING
6312-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
600
BREAKDOWN TORQUE
283
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
185
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
295
NEMA NOMINAL EFFICIENCY
92.4
FULL LOAD AMPS PRIMARY
46
SERVICE FACTOR AMPS PRIMARY
53
DW88
IHPO
07-3072
499495
