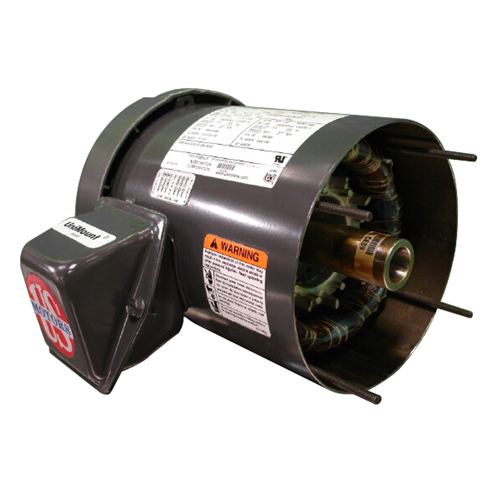

G595 - 1.5 HP - TEFC - 1745 RPM

Catalog #: G595
Model #:DY47

Details

Motor Modules
Totally Enclosed Fan Cooled (TEFC)
Three Phase
Inverter Duty
Discount Symbol:
DS-3MM
Unit Weight:
35.0
lbs
List Price Per Unit:
$634.00
  • Specifications
  • Technical Data
Model_Number
DY47
PRODUCT NAME
1.5 HP - TEFC - 1745
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
1.5
KILOWATTS
1.1
POLES
4
NUMBER SPEEDS
1
RPM
1745
RPM 2
1745
HERTZ
60
VOLTS PRIMARY
230/460
VOLTS
460
VOLTS 2
230
FRME
145
SHAFT CODE
T
ASSEMBLY POSITION
NA
MOTOR TYPE
UTIP
OPPOSITE END BEARING
6203-2Z-J/C3
SHAFT END BEARING
-
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.25
STARTCAPMFD
N\A
SHIPPING WEIGHT
35
BREAKDOWN TORQUE
459
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
365
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
L
LOCKED ROTOR AMPS
18.2
NEMA NOMINAL EFFICIENCY
84
FULL LOAD AMPS PRIMARY
4.5/2.3
SERVICE FACTOR AMPS PRIMARY
5.2/2.6
DY47
IHPO
NR
109144
