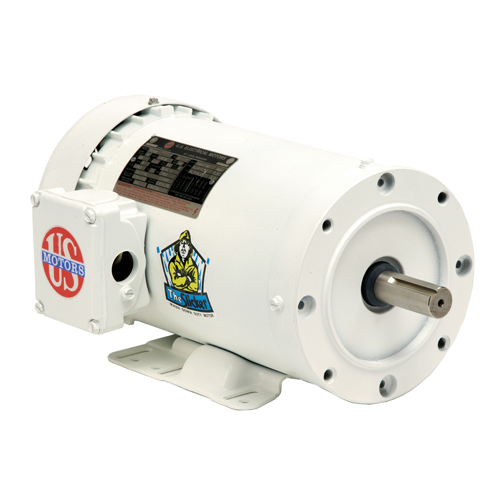

WD10P1DC - 10 HP - TEFC - 3515 RPM

Catalog #: WD10P1DC
Model #:FA05

Details

Special Application Washdown
Three Phase Totally Enclosed
Premium Efficient
C Face Footed
Discount Symbol:
DS-3WD
Unit Weight:
145.0
lbs
List Price Per Unit:
$2,283.00
  • Specifications
  • Technical Data
Model_Number
FA05
PRODUCT NAME
10 HP - TEFC - 3515
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
10
POLES
2
NUMBER SPEEDS
1
RPM
3515
HERTZ
60
VOLTS PRIMARY
208-230/460
FRME
215
KILOWATTS
7.5
RPM 2
3515
RPM 3
3485
RPM 4
2870
RPM 5
2870
HERTZ 2
50
VOLTS
460
VOLTS 2
230
VOLTS 3
208
VOLTS 4
380
VOLTS 5
190
SHAFT CODE
TC
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
WE
OPPOSITE END BEARING
6205-2RS-J/C3
SHAFT END BEARING
6208-2RS-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
145
BREAKDOWN TORQUE
296
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
177
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
81
NEMA NOMINAL EFFICIENCY
91
FULL LOAD AMPS PRIMARY
26.1-23.1/11.6
SERVICE FACTOR AMPS PRIMARY
0-26.7/13.3
