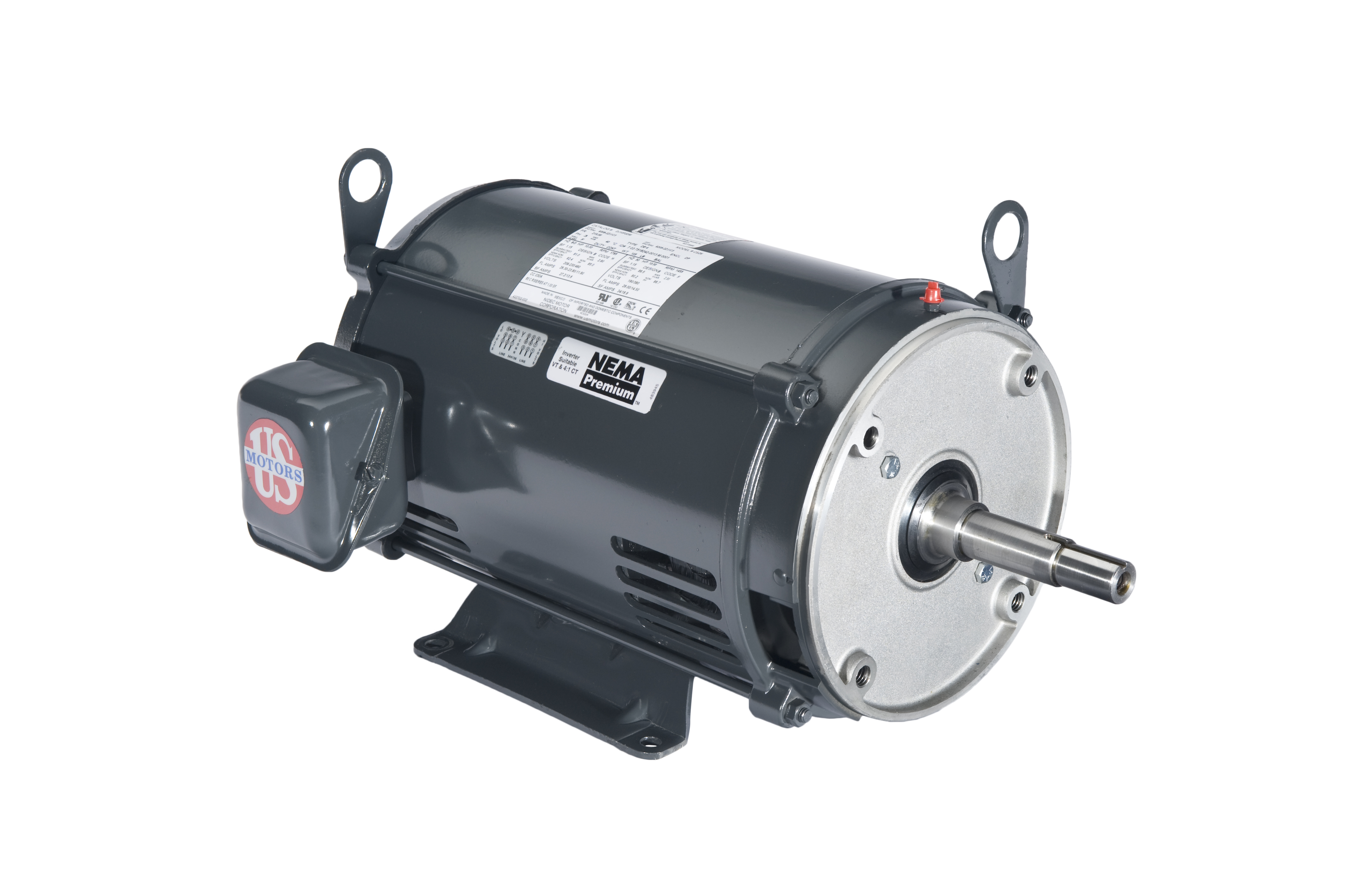

DJ2P2HM - 2 HP - ODP - 1740 RPM

Catalog #: DJ2P2HM
Model #:FF61

Details

Special Application Close Coupled Pump
Three Phase
Open Dripproof (ODP)
Premium Efficient
JM Shaft - Footed
Discount Symbol:
DS-3POP
Unit Weight:
35.0
lbs
List Price Per Unit:
$563.00
  • Specifications
  • Technical Data
Model_Number
FF61
PRODUCT NAME
2 HP - ODP - 1740
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
2
KILOWATTS
1.5
POLES
4
NUMBER SPEEDS
1
RPM
1740
HERTZ
60
VOLTS PRIMARY
200
VOLTS
200
FRME
145
SHAFT CODE
JM
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
DE4
OPPOSITE END BEARING
6203-2Z-J/C3
SHAFT END BEARING
6206-2Z-J/C3
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
35
INSULATION CLASS
F
KVA CODE LETTER
L
NEMA NOMINAL EFFICIENCY
86.5
FULL LOAD AMPS PRIMARY
6.3
SERVICE FACTOR AMPS PRIMARY
7
BREAKDOWN TORQUE
462
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
379
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR AMPS
54
FF61
IHPO
07-3138
499495
