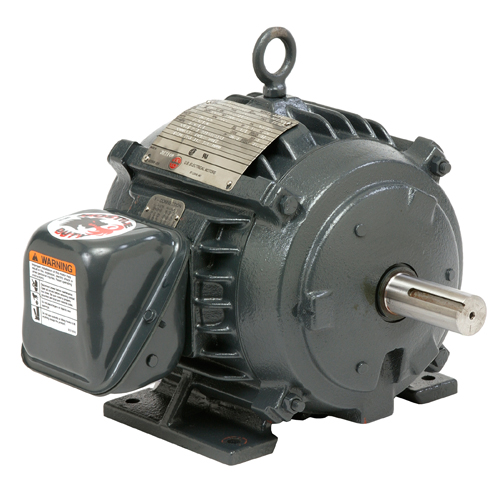

HVW20V2E6 - 20 HP - TEAO - 1770 RPM

Catalog #: HVW20V2E6
Model #:FH16

Details

Cooling Tower Duty
Three Phase Totally Enclosed Air Over (TEAO)
Premium Efficient Inverter Duty
10:1 (6-60 HZ) Speed Range Variable Torque
Discount Symbol:
DS-3HTS
Unit Weight:
340.0
lbs
List Price Per Unit:
$3,195.00
  • Specifications
  • Technical Data
Model_Number
FH16
PRODUCT NAME
20 HP - TEAO - 1770
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEAO
HORSEPOWER
20
POLES
4
NUMBER SPEEDS
1
RPM
1770
HERTZ
60
VOLTS PRIMARY
230/460
FRME
256
ROTATION
DUAL
STARTCAPMFD
N\A
FULL LOAD AMPS PRIMARY
47/23.7
RPM 2
1770
RPM 4
1460
RPM 5
1460
LOCKED ROTOR TORQUE
229
INSULATION CLASS
F
VOLTS
460
BREAKDOWN TORQUE
232
SERVICE FACTOR
1.15
BREAKDOWN TORQUE UOM
PERCENT OF FLT
MOTOR TYPE
CTNI
SHAFT CODE
T
LOCKED ROTOR AMPS
140
KILOWATTS
14.9
KVA CODE LETTER
F
ASSEMBLY POSITION
W6
AMBIENT
40
HERTZ 2
50
SERVICE FACTOR AMPS PRIMARY
55/27.4
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
MOUNTING
HORZ-FOOTED
SHIPPING WEIGHT
340
SHAFT END BEARING
6309-2RS-J/C3
OPPOSITE END BEARING
6309-2RS-J/C3
VOLTS 2
230
VOLTS 5
190
VOLTS 4
380
NEMA NOMINAL EFFICIENCY
93
