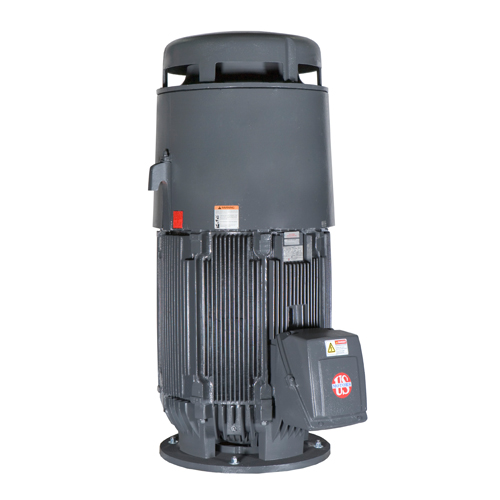

NO30P2BE - 30 HP - WPI - 1775 RPM

Catalog #: NO30P2BE
Model #:FK20

Details

Vertical Motors
Three Phase Weather Protected Type I (WPI) & Totally Enclosed Fan Cooled (TEFC)
Solid Shaft Normal Thrust
Premium Efficient
Discount Symbol:
DS-7NS
Unit Weight:
325.0
lbs
List Price Per Unit:
$5,455.00
  • Specifications
  • Technical Data
Model_Number
FK20
PRODUCT NAME
30 HP - WPI - 1775
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
WPI
HORSEPOWER
30
KILOWATTS
22.4
POLES
4
NUMBER SPEEDS
1
RPM
1775
RPM 2
1775
HERTZ
60
VOLTS PRIMARY
230/460
VOLTS
460
VOLTS 2
230
FRME
286
SHAFT CODE
VPZ
MOUNTING
VERT
ASSEMBLY POSITION
NA
MOTOR TYPE
AVS
OPPOSITE END BEARING
6210-2Z-J/C3
SHAFT END BEARING
6310-J/C3
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
325
BREAKDOWN TORQUE
242
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
249
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
217
NEMA NOMINAL EFFICIENCY
94.1
FULL LOAD AMPS PRIMARY
70/35
SERVICE FACTOR AMPS PRIMARY
81/40
FK20
IHPO
09-2323
130274
