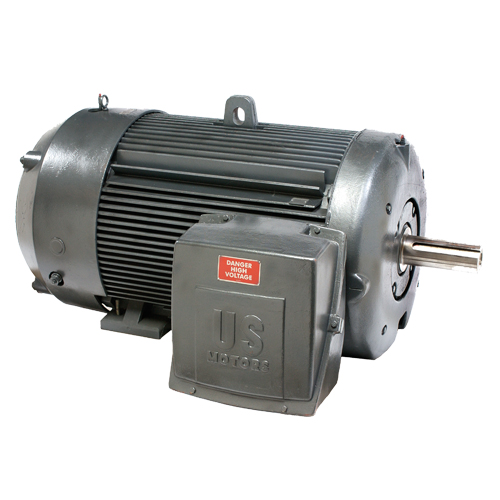

MODEL NUMBER

Catalog #:
Model #:FL16

Details

General Purpose
Three Phase Totally Enclosed Fan Cooled (TEFC)
CORRO-DUTY®
TITAN® Medium Voltage Motors
Discount Symbol:
Unit Weight:
4800.0
lbs
List Price Per Unit:
$51,798.00
  • Specifications
  • Technical Data
Model_Number
FL16
PRODUCT NAME
MODEL NUMBER
PHASETYPE
3
MOTOR ENCLOSURE
TEFC
HORSEPOWER
350 HP
KILOWATTS
261.1
POLES
4
NUMBER SPEEDS
1
RPM
1790 RPM
RPM 2
1790
HERTZ
60
VOLTS PRIMARY
2300/4000 V
VOLTS
4000
VOLTS 2
2300
FRME
5010
SHAFT CODE
S
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
JCE
OPPOSITE END BEARING
6315-J/C3
SHAFT END BEARING
6315-J/C3
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
4800
INSULATION CLASS
F
KVA CODE LETTER
F
NEMA NOMINAL EFFICIENCY
95
FULL LOAD AMPS PRIMARY
81.0/46.0
SERVICE FACTOR AMPS PRIMARY
92.0/53.0
FL16
IHPO
