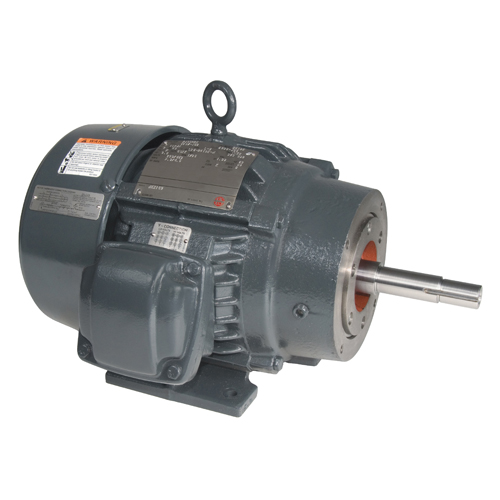

XJ3P2BM - 3 HP - TEFC - 1765 RPM

Catalog #: XJ3P2BM
Model #:FL59

Details

Special Application Close Coupled Pump
Three Phase
Hazardous Location Dual Label
Premium Efficient
JM Shaft - Footed
Discount Symbol:
DS-3PT
Unit Weight:
90.0
lbs
List Price Per Unit:
$1,122.00
  • Specifications
  • Technical Data
Model_Number
FL59
PRODUCT NAME
3 HP - TEFC - 1765
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
3
KILOWATTS
2.2
POLES
4
NUMBER SPEEDS
1
RPM
1765
RPM 2
1765
HERTZ
60
VOLTS PRIMARY
230/460
VOLTS
460
VOLTS 2
230
FRME
182
SHAFT CODE
JM
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
LE4
OPPOSITE END BEARING
6205-J/C3
SHAFT END BEARING
6307-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1
STARTCAPMFD
N\A
SHIPPING WEIGHT
90
BREAKDOWN TORQUE
391
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
262
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
K
LOCKED ROTOR AMPS
31
NEMA NOMINAL EFFICIENCY
89.5
FULL LOAD AMPS PRIMARY
7.7/3.8
FL59
IHPO
07-2816
109144
