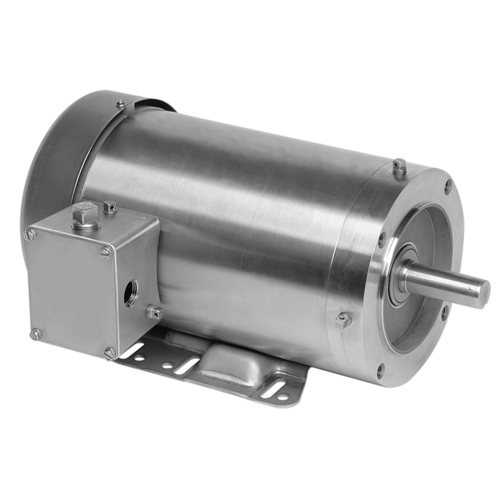

WDS1P2AHC - 1 HP - TENV - 1750 RPM

Catalog #: WDS1P2AHC
Model #:FP18

Details

Special Application Washdown
Three Phase Totally Enclosed
All Stainless Steel
C Face Footed
Discount Symbol:
DS-3WD
Unit Weight:
35.0
lbs
List Price Per Unit:
$1,529.00
  • Specifications
  • Technical Data
Model_Number
FP18
PRODUCT NAME
1 HP - TENV - 1750
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TENV
HORSEPOWER
1
KILOWATTS
0.7
POLES
4
NUMBER SPEEDS
1
RPM
1750
RPM 2
1750
RPM 3
1735
HERTZ
60
VOLTS PRIMARY
230/460
VOLTS
460
VOLTS 2
230
VOLTS 3
208
FRME
56
SHAFT CODE
HC
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
SSEN
OPPOSITE END BEARING
6203-2RS-J/C3
SHAFT END BEARING
6205-2RS-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
35
BREAKDOWN TORQUE
515
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
403
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
M
LOCKED ROTOR AMPS
13.5
NEMA NOMINAL EFFICIENCY
85.5
FULL LOAD AMPS PRIMARY
2.9/1.4
SERVICE FACTOR AMPS PRIMARY
3.2/1.6
FP18
IHPO
07-2484
109144
