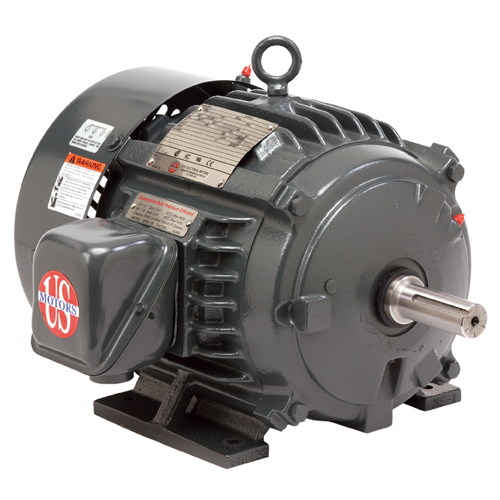

HN5T3BC - 5 HP - TENV - 1175 RPM

Catalog #: HN5T3BC
Model #:FV87

Details

Definite Purpose Three Phase
TEFC & TENV
HOSTILE DUTY™ Inverter Duty
20:1 (3-60 Hz) Speed Range Constant Torque
Discount Symbol:
DS-VST
Unit Weight:
175.0
lbs
List Price Per Unit:
$2,821.00
  • Specifications
  • Technical Data
Model_Number
FV87
PRODUCT NAME
5 HP - TENV - 1175
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TENV
HORSEPOWER
5
POLES
6
NUMBER SPEEDS
1
RPM
1175
HERTZ
60
VOLTS PRIMARY
460
FRME
215
ROTATION
DUAL
STARTCAPMFD
N\A
FULL LOAD AMPS PRIMARY
7.3
LOCKED ROTOR TORQUE
324
INSULATION CLASS
H
VOLTS
460
BREAKDOWN TORQUE
382
SERVICE FACTOR
1
BREAKDOWN TORQUE UOM
PERCENT OF FLT
MOTOR TYPE
CTNI
SHAFT CODE
TC
LOCKED ROTOR AMPS
54.6
KILOWATTS
3.7
KVA CODE LETTER
K
ASSEMBLY POSITION
F1
AMBIENT
40
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
MOUNTING
HORZ-FOOTED
SHIPPING WEIGHT
175
SHAFT END BEARING
6309-J/C3
OPPOSITE END BEARING
6206-2Z-J/C3
NEMA NOMINAL EFFICIENCY
89.5
FV87
IHPO
07-3151
109144
