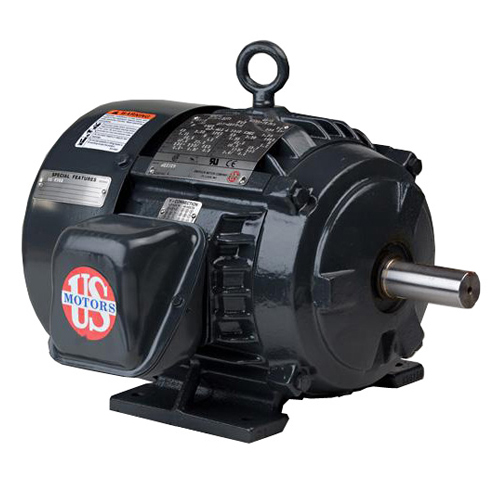

A40P2C - 40 HP - TEFC - 1785 RPM

Catalog #: A40P2C
Model #:GD78

Details

Definite Purpose
Automotive Duty U Frame
Premium Efficient
Discount Symbol:
DS-3ADE
Unit Weight:
590.0
lbs
List Price Per Unit:
$9,370.00
  • Specifications
  • Technical Data
Model_Number
GD78
PRODUCT NAME
40 HP - TEFC - 1785
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
40
KILOWATTS
29.8
POLES
4
NUMBER SPEEDS
1
RPM
1785
HERTZ
60
VOLTS PRIMARY
460
VOLTS
460
FRME
364
SHAFT CODE
U
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
JDE
OPPOSITE END BEARING
65BC02JPP3
SHAFT END BEARING
65BC03JPP3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
590
BREAKDOWN TORQUE
235
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
194
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
310.8
NEMA NOMINAL EFFICIENCY
94.5
FULL LOAD AMPS PRIMARY
46
SERVICE FACTOR AMPS PRIMARY
53
GD78
IHPO
08-1098
499495_D
