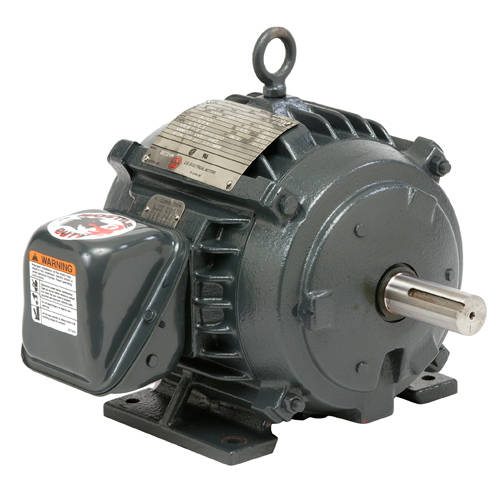

CVW5V2B6 - 5 HP - TEAO-IP55 - 1760 RPM

Catalog #: CVW5V2B6
Model #:GM04

Details

Cooling Tower Duty
Three Phase Totally Enclosed Air Over TEAO
Premium Efficient Inverter Duty
10:1 (6-60 Hz) Speed Range Variable Torque
Discount Symbol:
DS-3CTSW
Unit Weight:
130.0
lbs
List Price Per Unit:
$1,254.00
  • Specifications
  • Technical Data
Model_Number
GM04
PRODUCT NAME
5 HP - TEAO-IP55 - 1760
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEAO-IP55
HORSEPOWER
5
KILOWATTS
3.7
POLES
4
NUMBER SPEEDS
1
RPM
1760
RPM 2
1760
HERTZ
60
VOLTS PRIMARY
230/460
VOLTS
460
VOLTS 2
230
FRME
184
SHAFT CODE
T
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
W6
MOTOR TYPE
TCNI
OPPOSITE END BEARING
6205-2RS-J/C3
SHAFT END BEARING
6206-2RS-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
130
BREAKDOWN TORQUE
317
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
216
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
J
LOCKED ROTOR AMPS
48.3
NEMA NOMINAL EFFICIENCY
89.5
FULL LOAD AMPS PRIMARY
12.7/6.3
SERVICE FACTOR AMPS PRIMARY
14.5/7.2
GM04
IHPO
08-1171
109145
