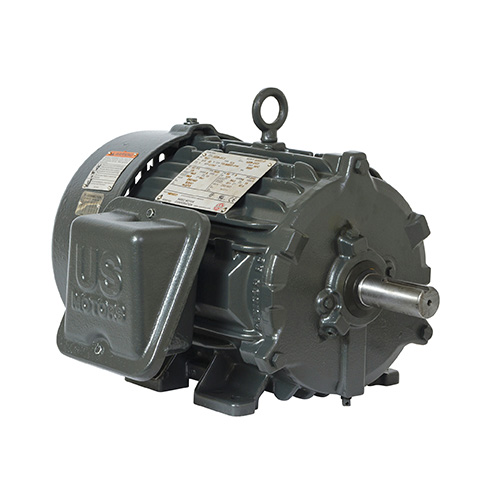

CW25V2H2 - 25 HP - TEFC-IP55 - 1780 RPM

Catalog #: CW25V2H2
Model #:GM56

Details

Cooling Tower Duty
Totally Enclosed Fan Cooled (TEFC)
Premium Efficient Inverter Duty
10:1 (6-60 Hz) Speed Range Variable Torque
Discount Symbol:
DS-3CTSW
Unit Weight:
385.0
lbs
List Price Per Unit:
$3,981.00
  • Specifications
  • Technical Data
Model_Number
GM56
PRODUCT NAME
25 HP - TEFC-IP55 - 1780
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP55
HORSEPOWER
25
KILOWATTS
18.6
POLES
4
NUMBER SPEEDS
1
RPM
1780
HERTZ
60
VOLTS PRIMARY
200
VOLTS
200
FRME
284
SHAFT CODE
T
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F2
MOTOR TYPE
TCI
OPPOSITE END BEARING
6210-2RS-J/C3
SHAFT END BEARING
6310-2RS-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
385
BREAKDOWN TORQUE
284
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
213
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
419
NEMA NOMINAL EFFICIENCY
93.6
FULL LOAD AMPS PRIMARY
67
SERVICE FACTOR AMPS PRIMARY
77
GM56
IHPO
08-1162
499495_D
