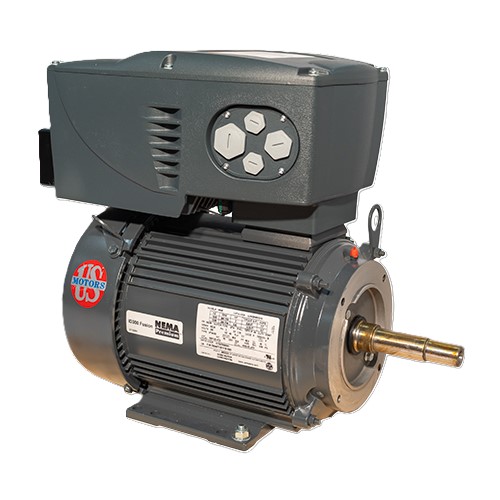

UJ3V1KM3ID13 - 3 HP - TEFC-IP54 - 3545 RPM

Catalog #: UJ3V1KM3ID13
Model #:HK44

Details

Special Application Close Coupled Pump
ID300 Fusion™ Integrated
Totally Enclosed Fan Cooled (TEFC)
Premium Efficient
JM Shaft - Footed
Discount Symbol:
DS-5ID
Unit Weight:
80.0
lbs
List Price Per Unit:
$1,815.00
  • Specifications
  • Technical Data
Model_Number
HK44
PRODUCT NAME
3 HP - TEFC-IP54 - 3545
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP54
HORSEPOWER
3
KILOWATTS
2.2
POLES
2
NUMBER SPEEDS
1
RPM
3545
HERTZ
60
VOLTS PRIMARY
230
VOLTS
230
FRME
182
SHAFT CODE
JM
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F3
MOTOR TYPE
UTI4
OPPOSITE END BEARING
6205-2Z-J/C3
SHAFT END BEARING
6307-2Z-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
80
BREAKDOWN TORQUE
356
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
262
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
K
LOCKED ROTOR AMPS
67
NEMA NOMINAL EFFICIENCY
86.5
FULL LOAD AMPS PRIMARY
8.1
SERVICE FACTOR AMPS PRIMARY
9
HK44
IHPO
07-3461
NR
