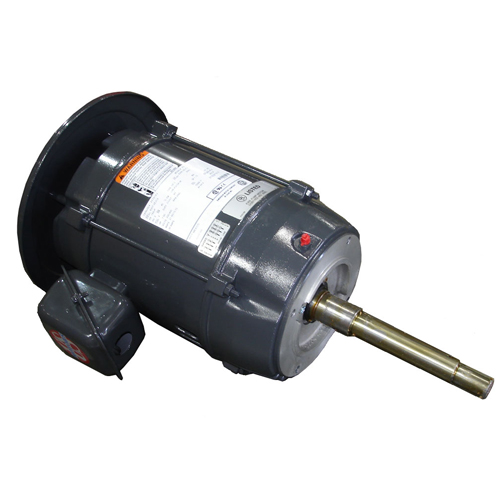

FF50E1XV - 50 HP - ODP - 3539 RPM

Catalog #: FF50E1XV
Model #:HR35

Details

Special Application
Three Phase Open Dripproof (ODP)
Fire Pump Motors Vertical Close Coupled Pump
UL Listed for Fire Pump Applications
JP Shaft - Footless
Discount Symbol:
DS-3FFP
Unit Weight:
385.0
lbs
List Price Per Unit:
$6,278.00
  • Specifications
  • Technical Data
Model_Number
HR35
PRODUCT NAME
50 HP - ODP - 3539
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
50
POLES
2
NUMBER SPEEDS
1
RPM
3539
HERTZ
60
VOLTS PRIMARY
200/400
FRME
324
STARTCAPMFD
N\A
FULL LOAD AMPS PRIMARY
130.0/65.0
RPM 2
3539
INSULATION CLASS
F
VOLTS
400
SERVICE FACTOR
1.15
MOTOR TYPE
FDF1
SHAFT CODE
JP
KILOWATTS
37.3
KVA CODE LETTER
G
ASSEMBLY POSITION
NA
AMBIENT
40
SERVICE FACTOR AMPS PRIMARY
151.0/76.0
MOUNTING
HORZ-FOOTLESS
SHIPPING WEIGHT
385
SHAFT END BEARING
6312-2Z-J/C3
OPPOSITE END BEARING
6309-2Z-J/C3
VOLTS 2
200
NEMA NOMINAL EFFICIENCY
92.4
HR35
IHPO
07-3496
137033
