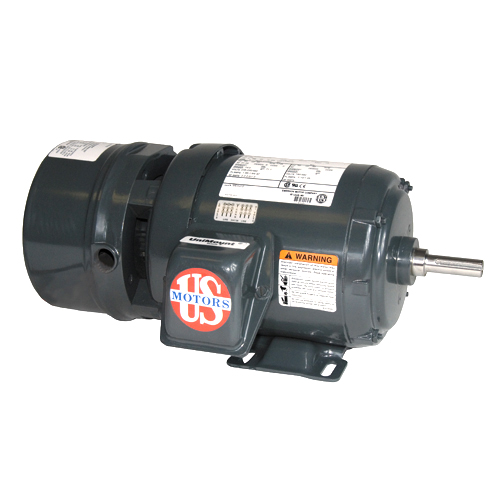

BMU12S2A - 0.5 HP - TEFC - 1770 RPM
Catalog #: BMU12S2A
Model #:HU18
Details
UNIMOUNT® Brakemotor
Totally Enclosed Fan Cooled (TEFC) Motor
Footed
Discount Symbol:
DS-0
Unit Weight:
30.0
lbs
List Price Per Unit:
$1,011.00
- Specifications
- Technical Data
Model_Number
HU18
PRODUCT NAME
.5 HP - TEFC - 1770
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC
HORSEPOWER
.5
POLES
4
NUMBER SPEEDS
1
RPM
1770
HERTZ
60
VOLTS PRIMARY
230/460
FRME
56
ROTATION
DUAL
STARTCAPMFD
N\A
FULL LOAD AMPS PRIMARY
2/1
RPM 2
1770
RPM 3
1765
LOCKED ROTOR TORQUE
296
INSULATION CLASS
F
VOLTS
460
BREAKDOWN TORQUE
457
SERVICE FACTOR
1.25
BREAKDOWN TORQUE UOM
PERCENT OF FLT
MOTOR TYPE
UT
SHAFT CODE
-
LOCKED ROTOR AMPS
7.4
KILOWATTS
0.4
KVA CODE LETTER
M
ASSEMBLY POSITION
F1
AMBIENT
40
SERVICE FACTOR AMPS PRIMARY
2.2/1.1
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
MOUNTING
HORZ-FOOTED
SHIPPING WEIGHT
30
SHAFT END BEARING
6205-2Z-J/C3
OPPOSITE END BEARING
6203-2Z-J/C3
VOLTS 3
208
VOLTS 2
230
NEMA NOMINAL EFFICIENCY
78.5
HU18
IHPO
07-3083
109144
