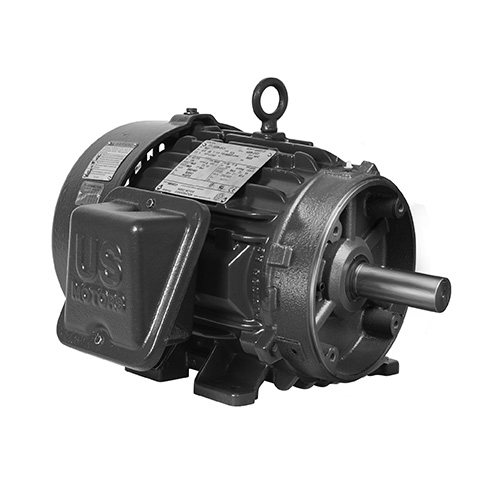

CD2P2EC - 2 HP - TEFC-IP55 - 1750 RPM

Catalog #: CD2P2EC
Model #:HW40

Details

General Purpose
Three Phase Totally Enclosed Fan Cooled (TEFC)
World Motor CORRO-DUTY®
Premium Efficient
C Face
Discount Symbol:
DS-3CEW
Unit Weight:
75.0
lbs
List Price Per Unit:
$744.00
  • Specifications
  • Technical Data
Model_Number
HW40
PRODUCT NAME
2 HP - TEFC-IP55 - 1750
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP55
HORSEPOWER
2
POLES
4
NUMBER SPEEDS
1
RPM
1750
HERTZ
60
VOLTS PRIMARY
230/460
FRME
145
KILOWATTS
1.5
RPM 2
1750
RPM 3
1735
RPM 4
1435
RPM 5
1435
HERTZ 2
50
VOLTS
460
VOLTS 2
230
VOLTS 3
208
VOLTS 4
400
VOLTS 5
200
SHAFT CODE
TC
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
TCE
OPPOSITE END BEARING
6203-J/C3
SHAFT END BEARING
6205-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
75
BREAKDOWN TORQUE
379
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
310
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
K
LOCKED ROTOR AMPS
21.6
NEMA NOMINAL EFFICIENCY
86.5
FULL LOAD AMPS PRIMARY
5.6/2.8
SERVICE FACTOR AMPS PRIMARY
6.2/3.1
