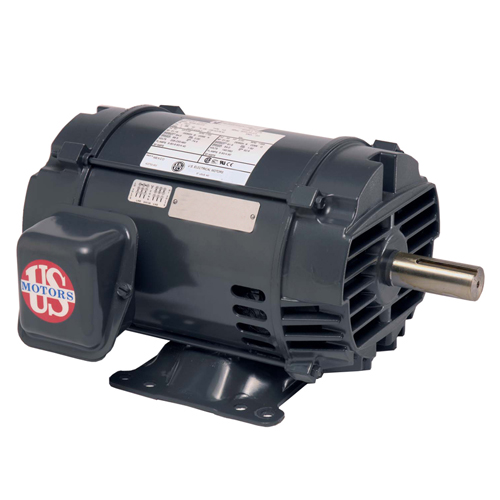

FF200E2FS - 200 HP - ODP - 1780 RPM

Catalog #: FF200E2FS
Model #:JA26

Details

Special Application
Three Phase Open Dripproof (ODP)
Fire Pump Motors
UL Listed for Fire Pump Applications
Discount Symbol:
DS-3FFP
Unit Weight:
1200.0
lbs
List Price Per Unit:
$15,945.00
  • Specifications
  • Technical Data
Model_Number
JA26
PRODUCT NAME
200 HP - ODP - 1780
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
200
POLES
4
NUMBER SPEEDS
1
RPM
1780
HERTZ
60
VOLTS PRIMARY
460
FRME
445
STARTCAPMFD
N\A
FULL LOAD AMPS PRIMARY
230
RPM 4
1485
LOCKED ROTOR TORQUE
155
INSULATION CLASS
F
VOLTS
460
BREAKDOWN TORQUE
213
SERVICE FACTOR
1.15
BREAKDOWN TORQUE UOM
PERCENT OF FLT
MOTOR TYPE
FR
SHAFT CODE
TS
LOCKED ROTOR AMPS
1298.8
KILOWATTS
149.1
KVA CODE LETTER
F
ASSEMBLY POSITION
F1
AMBIENT
40
HERTZ 2
50
SERVICE FACTOR AMPS PRIMARY
264
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
MOUNTING
HORZ-FOOTED
SHIPPING WEIGHT
1200
SHAFT END BEARING
6313-J
OPPOSITE END BEARING
6313-J
VOLTS 4
380
NEMA NOMINAL EFFICIENCY
95
JA26
IHPO
07-3556
957238
