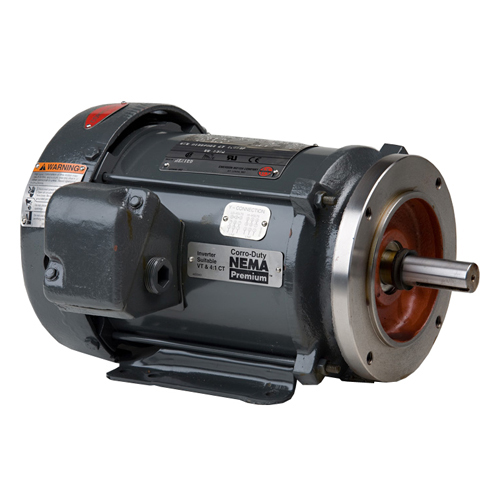

CD1P2GC - 1 HP - TEFC-IP55 - 1765 RPM

Catalog #: CD1P2GC
Model #:JC30

Details

General Purpose
Three Phase Totally Enclosed Fan Cooled (TEFC)
CORRO-DUTY®
Premium Efficient C Face
C Face
Discount Symbol:
DS-3CEW
Unit Weight:
65.0
lbs
List Price Per Unit:
$623.00
  • Specifications
  • Technical Data
Model_Number
JC30
PRODUCT NAME
1 HP - TEFC-IP55 - 1765
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP55
HORSEPOWER
1
KILOWATTS
0.7
POLES
4
NUMBER SPEEDS
1
RPM
1765
HERTZ
60
VOLTS PRIMARY
575
VOLTS
575
FRME
143
SHAFT CODE
TC
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
TCE
OPPOSITE END BEARING
6203-J/C3
SHAFT END BEARING
6205-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
65
BREAKDOWN TORQUE
471
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
365
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
M
LOCKED ROTOR AMPS
11
NEMA NOMINAL EFFICIENCY
85.5
FULL LOAD AMPS PRIMARY
1.3
SERVICE FACTOR AMPS PRIMARY
1.4
JC30
IHPO
08-1052
499495_Y
