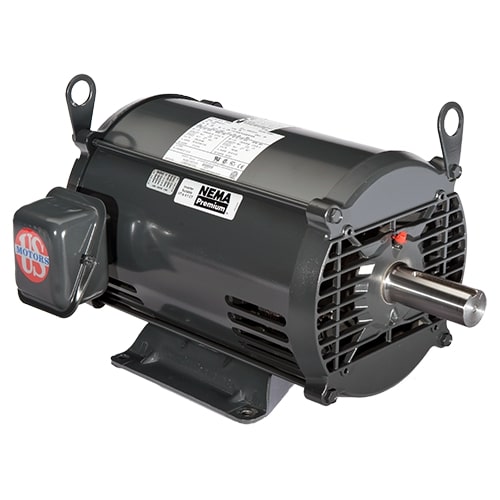

DA75V1BS  - 75 HP - ODP - 3560 RPM

Catalog #: DA75V1BS
Model #:JG94

Details

Special Application Air Handling Duty
Three Phase Open Drip Proof (ODP)
Inverter Duty 20:1 (3-60 Hertz) Speed Range Variable Torque
Discount Symbol:
DS-VSO
Unit Weight:
495.0
lbs
List Price Per Unit:
$6,337.00
  • Specifications
  • Technical Data
Model_Number
JG94
PRODUCT NAME
75 HP - ODP - 3560
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
ODP
HORSEPOWER
75
POLES
2
NUMBER SPEEDS
1
RPM
3560
HERTZ
60
VOLTS PRIMARY
230/460
FRME
364
KILOWATTS
55.9
RPM 2
3560
VOLTS
460
VOLTS 2
230
SHAFT CODE
TS
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
DI
OPPOSITE END BEARING
6212-2Z-J/C3
SHAFT END BEARING
6212-2Z-J/C3
AMBIENT
40
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
495
BREAKDOWN TORQUE
295
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
194
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
561
NEMA NOMINAL EFFICIENCY
93.6
FULL LOAD AMPS PRIMARY
170/85
SERVICE FACTOR AMPS PRIMARY
196/98
JG94
IHPO
07-3401
109145
