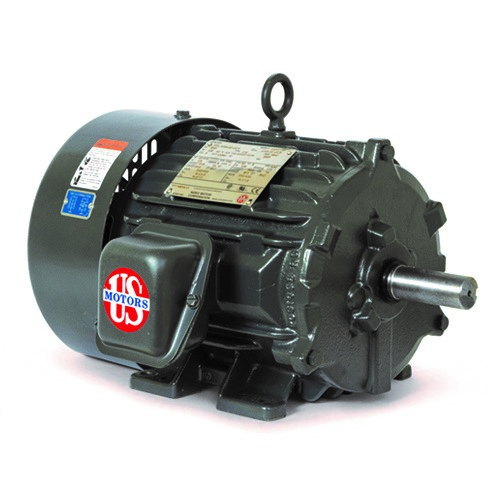

HDA75V1BS - 75 HP - TEFC-IP54 - 3565 RPM

Catalog #: HDA75V1BS
Model #:JH17

Details

Special Application Air Handling Duty
Three Phase Totally Enclosed Fan Cooled (TEFC) World Motor HOSTILE DUTY®
Inverter Duty 20:1 (3-60 Hertz) Speed Range Variable Torque
Discount Symbol:
DS-VSTW
Unit Weight:
650.0
lbs
List Price Per Unit:
$8,084.00
  • Specifications
  • Technical Data
Model_Number
JH17
PRODUCT NAME
75 HP - TEFC-IP54 - 3565
PHASETYPE
3_PHASE
MOTOR ENCLOSURE
TEFC-IP54
HORSEPOWER
75
POLES
2
NUMBER SPEEDS
1
RPM
3565
HERTZ
60
VOLTS PRIMARY
230/460
FRME
365
KILOWATTS
55.9
RPM 2
3565
VOLTS
460
VOLTS 2
230
SHAFT CODE
TS
MOUNTING
HORZ-FOOTED
ASSEMBLY POSITION
F1
MOTOR TYPE
CTI
OPPOSITE END BEARING
6213-2Z-J/C3
SHAFT END BEARING
6313-2Z-J/C3
AMBIENT
40
ROTATION
DUAL
SERVICE FACTOR
1.15
STARTCAPMFD
N\A
SHIPPING WEIGHT
650
BREAKDOWN TORQUE
296
BREAKDOWN TORQUE UOM
PERCENT OF FLT
LOCKED ROTOR TORQUE
153
LOCKED ROTOR TORQUE UOM
PERCENT OF FLT
INSULATION CLASS
F
KVA CODE LETTER
G
LOCKED ROTOR AMPS
581
NEMA NOMINAL EFFICIENCY
94.1
FULL LOAD AMPS PRIMARY
165/83
SERVICE FACTOR AMPS PRIMARY
191/96
JH17
IHPO
08-1041
109145
