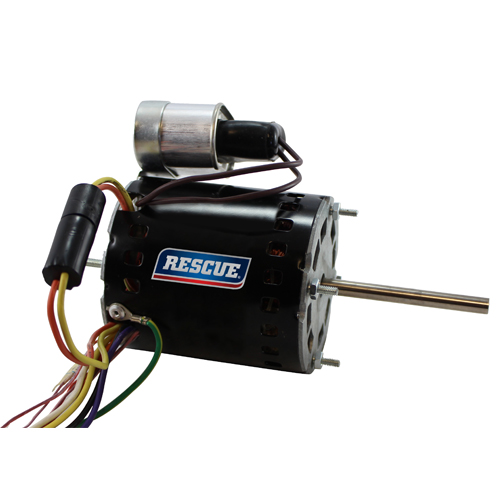

9721 - 1/12-1/20 HP - OAO - 1550RPM

Catalog #: 9721
Model #:K033DHN1450014B

Details

Permanent Split Capacitor
3.3" Dia. Open Air Over
Reversible Rotation
Capacitor included
12" Leads
Discount Symbol:
DS-3HAC
Unit Weight:
4.25
lbs
List Price Per Unit:
$111.00
  • Specifications
  • Technical Data
MODEL NUMBER
K033DHN1450014B
CATALOG NUMBER
9721
PHASE TYPE
1_PERM SPLIT CAP
MOTOR ENCLOSURE
OAO
HORSEPOWER
1/12-1/20
POLES
4
NUMBER SPEEDS
1
RPM
1550RPM
RPM 2
1350
HERTZ
60
VOLTS PRIMARY
115/208-230
VOLTS
115
VOLTS 2
208
FRAME
33
MOUNTING
STUD
MOTOR TYPE
FHP
AMBIENT
50
ROTATION
CCWSE REV
SERVICE FACTOR
1
RUNCAPMFD
4
RUNCAPVOLTS
370
SHIPPING WEIGHT
4
THERMAL PROTECTION
AUTOMATIC RESET
INSULATION CLASS
B
FULL LOAD AMPS PRIMARY
1.1/0.57
Model_Number
K033DHN1450014B
PRODUCT NAME
.083 HP - - 1550
PHASETYPE
1_PHASE
RPM 4
1350
HERTZ 2
50
VOLTS
115
VOLTS 3
230
STARTCAPMFD
N\A
K033DHN1450014B
FHPO
V02821064
