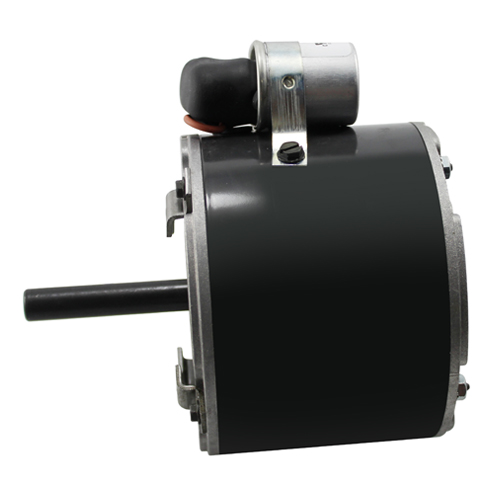

1989P - 0.05 HP - OPEN - 1625 RPM

Catalog #: 1989P
Model #:K048GGL4325011B

Details

Permanent Split Capacitor
Condenser Fan
5.0" Dia. Open Air Over Enclosure
Band Mount
OEM Replacement for Copeland
Discount Symbol:
DS-3HAC
Unit Weight:
8.38
lbs
List Price Per Unit:
$338.00
  • Specifications
  • Technical Data
Model_Number
K048GGL4325011B
PRODUCT NAME
.05 HP - OPEN - 1625
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.05
POLES
4
NUMBER SPEEDS
1
RPM
1625
RPM 2
1325
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
230 V
VOLTS
230
FRME
42
SHAFT CODE
Y
STATOR DIAMETER
4.8
STACK
0.75
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
ROTATION
CW DRIVE END
RUNCAPMFD
3
RUNCAPVOLTS
370
SHIPPING WEIGHT
8
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
6.901
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
2.872
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
1.27
FULL LOAD AMPS PRIMARY
0.8
K048GGL4325011B
FHPO
V01776468
