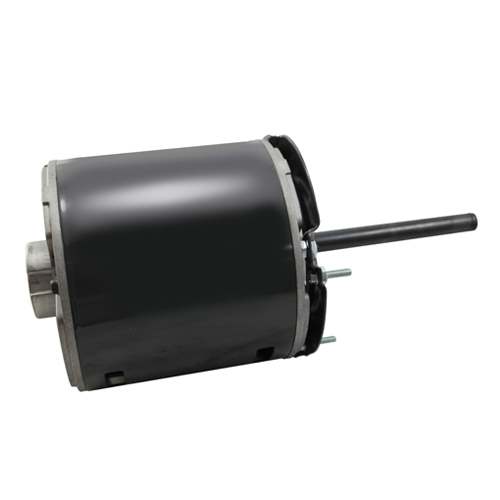

1390 - 0.25 HP - OAO - 1050 RPM

Catalog #: 1390
Model #:K048STZ3519012B

Details

Permanent Split Capacitor
Direct Drive Blower
5.0" Dia. Open Air Over (OAO)
Single Shaft
Stud or Hub Ring Mount
Discount Symbol:
DS-3HAC
Unit Weight:
12.0
lbs
List Price Per Unit:
$216.00
  • Specifications
  • Technical Data
Model_Number
K048STZ3519012B
PRODUCT NAME
.25 HP - OAO - 1050
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OAO
HORSEPOWER
.25
KILOWATTS
0.2
POLES
6
NUMBER SPEEDS
3
RPM
1050
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
42
SHAFT CODE
Y
STATOR DIAMETER
4.8
STACK
1.75
MOUNTING
STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
7.5
RUNCAPVOLTS
370
SHIPPING WEIGHT
12
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
31.69
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.939
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
8.26
FULL LOAD AMPS PRIMARY
2.8
K048STZ3519012B
FHPO
V02815987
