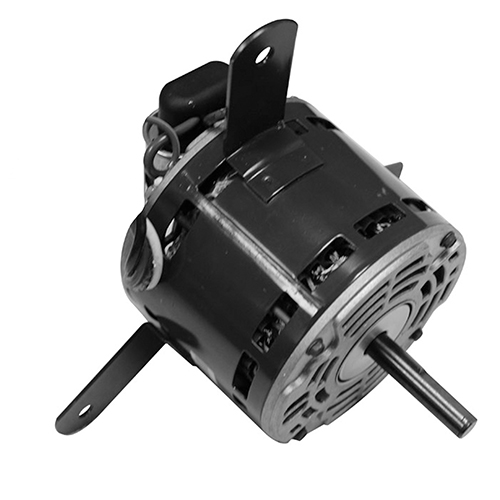

1105 - 0.063 HP - OPEN - 850 RPM

Catalog #: 1105
Model #:K048TUB0122013B

Details

Permanent Split Capacitor
Single Shaft Direct Drive Blower
5.0" Dia. Open Air Over (OAO)
Packaged Terminal A/C Heat Pump
Lug Mount
Discount Symbol:
DS-3HAC
Unit Weight:
8.5627
lbs
List Price Per Unit:
$254.00
  • Specifications
  • Technical Data
Model_Number
K048TUB0122013B
PRODUCT NAME
.063 HP - OPEN - 850
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.063
KILOWATTS
0.1
POLES
6
NUMBER SPEEDS
3
RPM
850
RPM 2
700
RPM 3
525
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
42
SHAFT CODE
Y
STATOR DIAMETER
4.8
STACK
1.25
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
9
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
20.89
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.987
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
5.6
FULL LOAD AMPS PRIMARY
1.1
K048TUB0122013B
FHPO
V02823771
