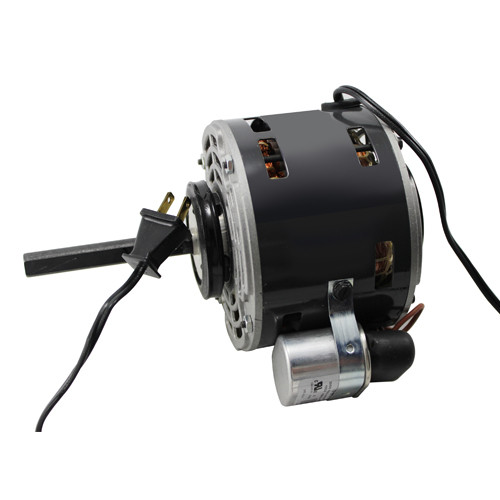

2166P - 0.167 HP - OPEN - 1050 RPM

Catalog #: 2166P
Model #:K048WGN4385011B

Details

Permanent Split Capacitor
Direct Drive Blower
5.0" Dia. Open Air Over (OAO)
Single Shaft
Stud or Hub Ring Mount
Discount Symbol:
DS-3FMP
Unit Weight:
8.38
lbs
List Price Per Unit:
$110.00
  • Specifications
  • Technical Data
Model_Number
K048WGN4385011B
PRODUCT NAME
.167 HP - OPEN - 1050
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.167
KILOWATTS
0.1
POLES
6
NUMBER SPEEDS
1
RPM
1050
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
42
SHAFT CODE
Y
STATOR DIAMETER
4.8
STACK
0.875
MOUNTING
HUB
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
SHIPPING WEIGHT
8
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
15.65
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
3.952
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
4.56
FULL LOAD AMPS PRIMARY
2.6
K048WGN4385011B
FHPO
V01776477
