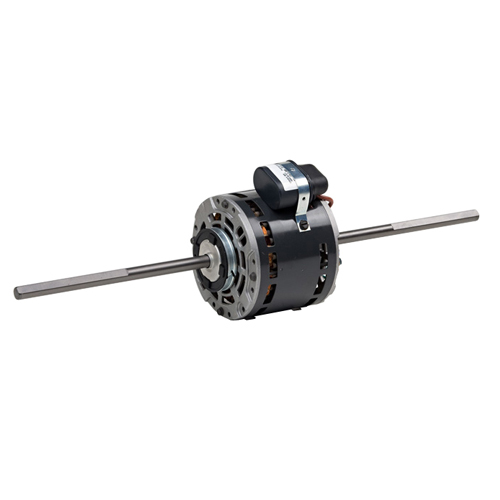

1221P - 0.25 HP - OPEN - 1550 RPM

Catalog #: 1221P
Model #:K048WHG4397011B

Details

Permanent Split Capacitor
Direct Drive Blower
5.0" Dia. Open Air Over (OAO)
Double Shaft
Stud or Hub Ring Mount
Discount Symbol:
DS-3HAC
Unit Weight:
8.38
lbs
List Price Per Unit:
$354.00
  • Specifications
  • Technical Data
Model_Number
K048WHG4397011B
PRODUCT NAME
.25 HP - OPEN - 1550
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.25
KILOWATTS
0.2
POLES
4
NUMBER SPEEDS
3
RPM
1550
HERTZ
60
VOLTS PRIMARY
230 V
VOLTS
230
FRME
42
SHAFT CODE
Y
STATOR DIAMETER
4.8
STACK
1.25
MOUNTING
HUB/STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPVOLTS
370
SHIPPING WEIGHT
8
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
21.42
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
6.511
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
3.72
FULL LOAD AMPS PRIMARY
1.6
K048WHG4397011B
FHPO
V01776456
