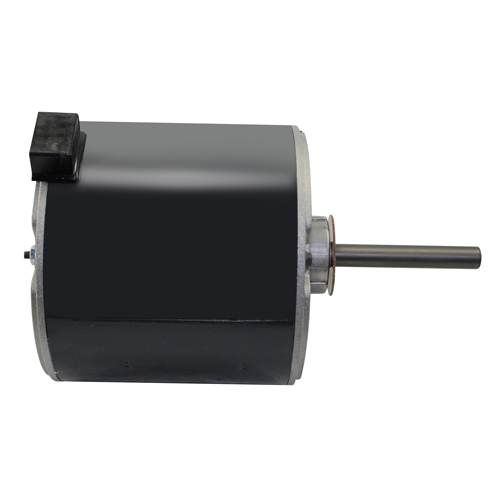

LX7922 - 0.33 HP - ENCLOSED - 1075 RPM

Catalog #: LX7922
Model #:K055DUU1260011B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Enclosed Air Over
Terminal Block Connection
LENNOX OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
15.33
lbs
List Price Per Unit:
$249.00
  • Specifications
  • Technical Data
Model_Number
K055DUU1260011B
PRODUCT NAME
.33 HP - ENCLOSED - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ENCLOSED
HORSEPOWER
.33
KILOWATTS
0.3
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
460 & 380-420 V
VOLTS
460
VOLTS 2
380
VOLTS 3
420
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.25
MOTOR TYPE
FHP
OPPOSITE END BEARING
6201
SHAFT END BEARING
6201
ROTATION
CCW LEAD END
RUNCAPMFD
10
RUNCAPVOLTS
370
SHIPPING WEIGHT
15
THERMAL PROTECTION
THERMALLY PROTECTED
BREAKDOWN TORQUE
39.93
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
10.42
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
2.17
FULL LOAD AMPS PRIMARY
1.3
VOLTS 4
380
VOLTS 5
420
