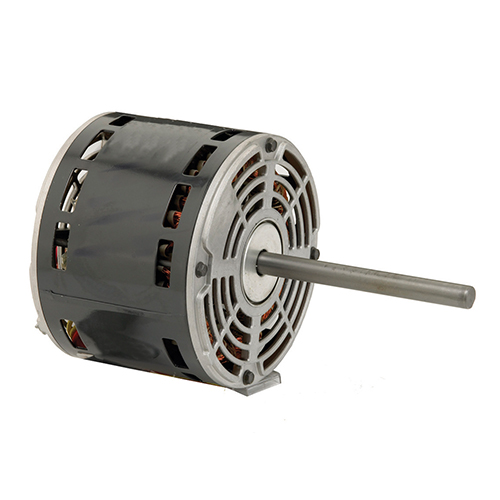

6452 - 0.75 HP - OPEN - 1075 RPM

Catalog #: 6452
Model #:K055GWN4594721B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over (OAO)
Stud or Hub Ring Mount
4-Speed
Discount Symbol:
DS-3HAC
Unit Weight:
22.12
lbs
List Price Per Unit:
$299.00
  • Specifications
  • Technical Data
Model_Number
K055GWN4594721B
PRODUCT NAME
.75 HP - OPEN - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.75
KILOWATTS
0.6
POLES
6
NUMBER SPEEDS
4
RPM
1075
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.75
MOUNTING
BAND
MOTOR TYPE
000
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
15
RUNCAPVOLTS
370
SHIPPING WEIGHT
18
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
109
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
15.68
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
28.25
NEMA NOMINAL EFFICIENCY
56.7
FULL LOAD AMPS PRIMARY
11.2
SERVICE FACTOR AMPS PRIMARY
11.2
K055GWN4594721B
FHPO
V02822735
