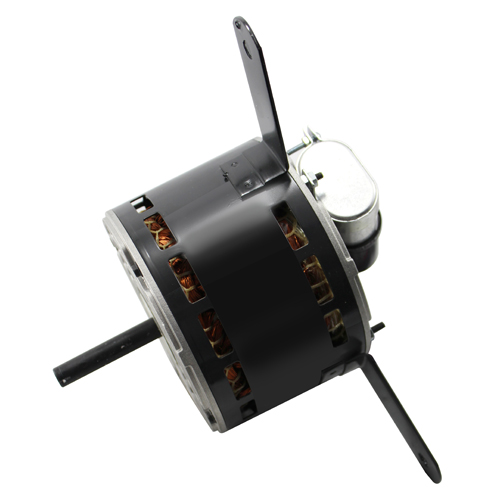

1679 - 0.1 HP - OPEN - 810 RPM

Catalog #: 1679
Model #:K055HAB2059013B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over
3 Speed with Flex Mount
OEM Replacement for Trane
Discount Symbol:
DS-3HAC
Unit Weight:
13.0
lbs
List Price Per Unit:
$277.00
  • Specifications
  • Technical Data
Model_Number
K055HAB2059013B
PRODUCT NAME
.1 HP - OPEN - 810
PHASETYPE
1_PERMANENT SPLIT CAPACITOR
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.1
KILOWATTS
0.1
POLES
8
NUMBER SPEEDS
3
RPM
810
HERTZ
60
VOLTS PRIMARY
277 V
VOLTS
277
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.25
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
13
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
14.18
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
5.381
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
A
LOCKED ROTOR AMPS
1.05
FULL LOAD AMPS PRIMARY
.51
K055HAB2059013B
FHPO
V02822733
