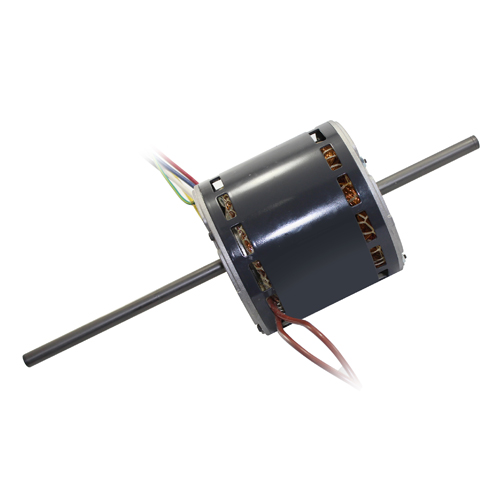

CA3414 - 0.5 HP - OPEN - 1075 RPM

Catalog #: CA3414
Model #:K055KNH0226011B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over
Double Shaft Band Mount
CARRIER OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
15.35
lbs
List Price Per Unit:
$189.00
  • Specifications
  • Technical Data
Model_Number
K055KNH0226011B
PRODUCT NAME
.5 HP - OPEN - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.5
KILOWATTS
0.4
POLES
6
NUMBER SPEEDS
4
RPM
1075
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.25
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
7.5
RUNCAPVOLTS
370
SHIPPING WEIGHT
15
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
72.06
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
9.229
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
19.81
FULL LOAD AMPS PRIMARY
7.9
K055KNH0226011B
FHPO
V02823728
