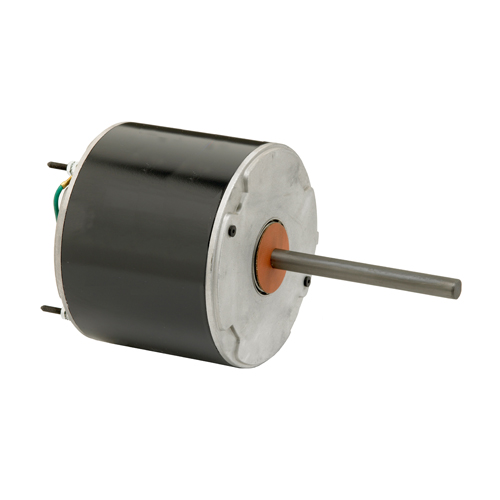

CA3407 - 0.067 HP - ENCLOSED - 800 RPM

Catalog #: CA3407
Model #:K055KNR0234013B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Enclosed Air Over
Special Mount for OEM
CARRIER OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
6.74
lbs
List Price Per Unit:
$130.00
  • Specifications
  • Technical Data
Model_Number
K055KNR0234013B
PRODUCT NAME
.067 HP - ENCLOSED - 800
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ENCLOSED
HORSEPOWER
.067
KILOWATTS
0.1
POLES
8
NUMBER SPEEDS
1
RPM
800
HERTZ
60
VOLTS PRIMARY
200-230 V
VOLTS
200
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
0.75
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
ROTATION
CW LEAD END
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
7
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
8.164
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
3.354
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
0.88
FULL LOAD AMPS PRIMARY
.7
K055KNR0234013B
FHPO
V01789283
