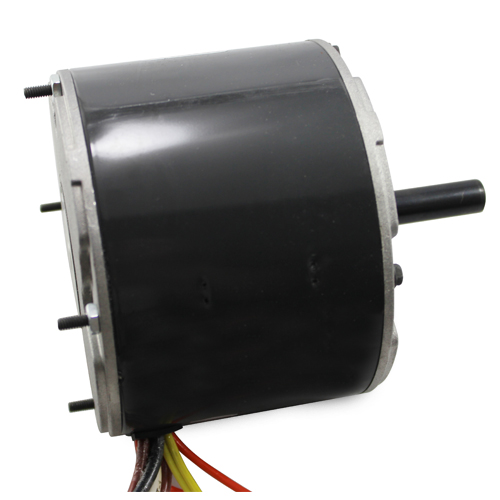

1743 - 0.25 HP - TEAO - 850 RPM

Catalog #: 1743
Model #:K055KWA0715013B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Totally Enclosed Air Over
140°F (60°C) Ambient Design
OEM Replacement for York
Discount Symbol:
DS-3HAC
Unit Weight:
17.0
lbs
List Price Per Unit:
$226.00
  • Specifications
  • Technical Data
Model_Number
K055KWA0715013B
PRODUCT NAME
.25 HP - TEAO - 850
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
TEAO
HORSEPOWER
.25
KILOWATTS
0.2
POLES
8
NUMBER SPEEDS
1
RPM
850
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.75
MOUNTING
STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
60
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
17
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
35.53
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
7.375
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
2.94
FULL LOAD AMPS PRIMARY
1.5
