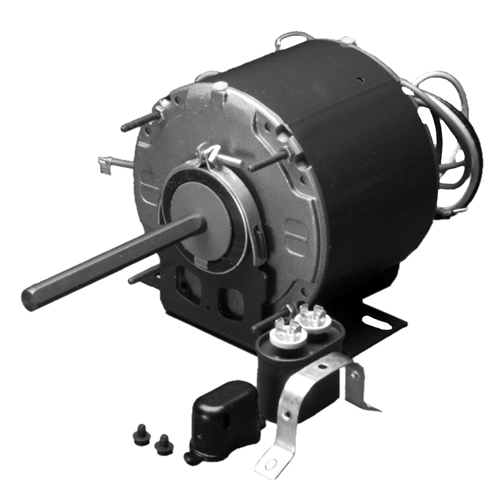

4671 - 0.25 HP - OPEN - 1100 RPM

Catalog #: 4671
Model #:K055LRJ2554014B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Open Dripproof Air Over
Resilient Base With Capacitor
Extending Studs
Discount Symbol:
DS-3HAC
Unit Weight:
10.04
lbs
List Price Per Unit:
$270.00
  • Specifications
  • Technical Data
Model_Number
K055LRJ2554014B
PRODUCT NAME
.25 HP - OPEN - 1100
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.25
KILOWATTS
0.2
POLES
6
NUMBER SPEEDS
1
RPM
1100
HERTZ
60
VOLTS PRIMARY
208-230 V
VOLTS
208
VOLTS 2
230
FRME
56
SHAFT CODE
YZ
STATOR DIAMETER
5.5
STACK
1
MOUNTING
RESILIENT BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
SAB OR SLV
SHAFT END BEARING
SAB OR SLV
AMBIENT
40
ROTATION
CW LEAD END REV
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
10
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
27.79
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
6.702
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
3.27
FULL LOAD AMPS PRIMARY
1.3
K055LRJ2554014B
FHPO
V02812196
