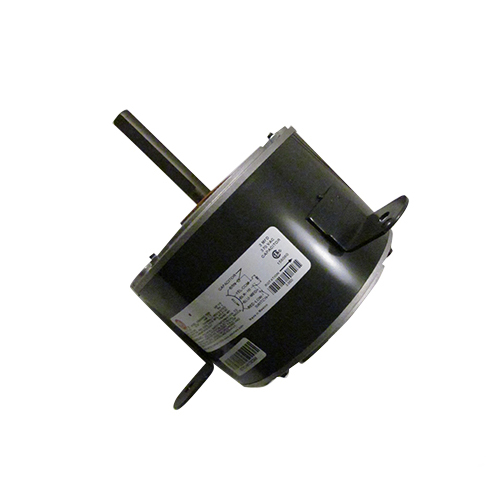

1129 - 0.125 HP - OPEN - 1075 RPM

Catalog #: 1129
Model #:K055MAG0218013B

Details

Permanent Split Capacitor
Direct Drive Fan & Blower
5.6" Dia. Open Air Over (OAO)
Multi-Speed Flex Mount
Reversible Rotation
Discount Symbol:
DS-3HAC
Unit Weight:
10.5368
lbs
List Price Per Unit:
$194.00
  • Specifications
  • Technical Data
Model_Number
K055MAG0218013B
PRODUCT NAME
.125 HP - OPEN - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPEN
HORSEPOWER
.125
KILOWATTS
0.1
POLES
6
NUMBER SPEEDS
2
RPM
1075
RPM 2
575
HERTZ
60
VOLTS PRIMARY
115-127 V
VOLTS
115
VOLTS 2
127
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
1.125
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
40
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
4
RUNCAPVOLTS
370
SHIPPING WEIGHT
11
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
17.29
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
4.657
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
4.23
FULL LOAD AMPS PRIMARY
2.4
K055MAG0218013B
FHPO
V01782969
