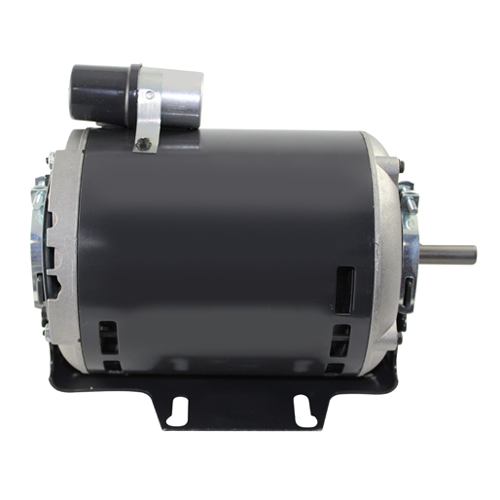

4153 - 0.25 HP - ODP - 1015 RPM

Catalog #: 4153
Model #:K055MDP4133013B

Details

Permanent Split Capacitor
Centrifugal Ventilation Direct Drive Blower
Open Air Over (OAO)
5.0" and 5.6" Diameter
Stud Mount
Discount Symbol:
DS-3HAC
Unit Weight:
20.3228
lbs
List Price Per Unit:
$303.00
  • Specifications
  • Technical Data
Model_Number
K055MDP4133013B
PRODUCT NAME
.25 HP - ODP - 1015
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
ODP
HORSEPOWER
.25
KILOWATTS
0.2
POLES
6
NUMBER SPEEDS
1
RPM
1015
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
STATOR DIAMETER
5.5
STACK
2.5
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
ROTATION
CW LEAD END
RUNCAPMFD
7.5
RUNCAPVOLTS
370
SHIPPING WEIGHT
18
BREAKDOWN TORQUE
38.22
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
6.881
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
9.57
SHAFT CODE
Y
K055MDP4133013B
FHPO
V01753869
