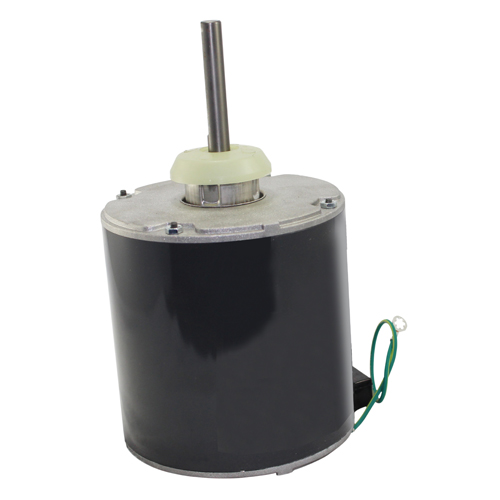

1128,OAO,1PH,STD

Catalog #: 1128
Model #:K055NRB1127011B

Details

Permanent Split Capacitor
Condenser Fan
5.6" Dia. Enclosed Air Over
Terminal Block Connection
LENNOX OEM Replacement
Discount Symbol:
DS-3HAC
Unit Weight:
19.83
lbs
List Price Per Unit:
$631.00
  • Specifications
  • Technical Data
Model_Number
K055NRB1127011B
PRODUCT NAME
.5 HP - - 1075
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
OAO
HORSEPOWER
.5
KILOWATTS
0.4
POLES
6
NUMBER SPEEDS
1
RPM
1075
HERTZ
60
VOLTS PRIMARY
460
VOLTS
460
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.5
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
60
ROTATION
CCW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
10
RUNCAPVOLTS
370
SHIPPING WEIGHT
18
BREAKDOWN TORQUE
60.4
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
17.52
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
F
LOCKED ROTOR AMPS
2.97
FULL LOAD AMPS PRIMARY
1.3
SERVICE FACTOR AMPS PRIMARY
1.3
K055NRB1127011B
FHPO
V01782147
