3312 - 0.75 HP - OPAO - 1075 RPM

Catalog #: 3312
Model #:K055PNF2850012B

Details

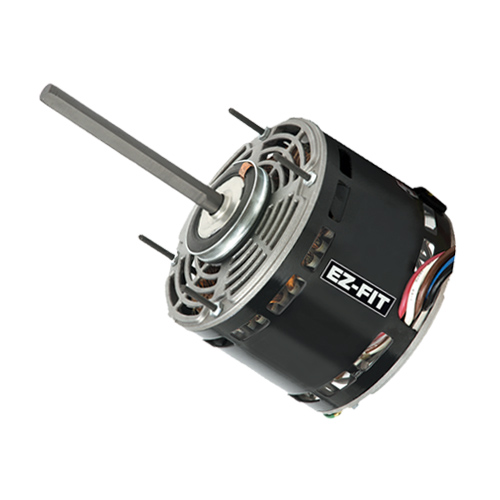

EZ-FIT® Permanent Split Capacitor Motor
Direct Drive Blower
5.6" Dia. Open Air Over
Multi-Horsepower
Mounting shell holes with screws
Discount Symbol:
DS-3HAC
Unit Weight:
16.6
lbs
List Price Per Unit:
$208.00
  • Specifications
  • Technical Data
Model_Number
K055PNF2850012B
PRODUCT NAME
.75 HP - OPAO - 1075
PHASETYPE
1_PERMANENT SPLIT CA
MOTOR ENCLOSURE
OPAO
HORSEPOWER
.75
HORSEPOWER 2
0.2
POLES
6
NUMBER SPEEDS
4
RPM
1075
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.75
MOUNTING
RING/STUD
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
CCW LEAD END REV
SERVICE FACTOR
1
RUNCAPMFD
20
RUNCAPVOLTS
370
SHIPPING WEIGHT
17
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
81.82
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
15.67
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
19.89
FULL LOAD AMPS PRIMARY
8.1-3.1
SERVICE FACTOR AMPS PRIMARY
8.1-3.1
K055PNF2850012B
FHPO
V02814584
