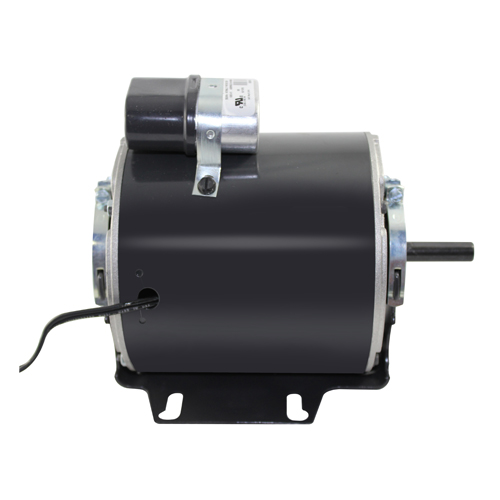

6128,OPAO,1PH,UN

Catalog #: 6128
Model #:K055PUE1678013B

Details

Permanent Split Capacitor
Refrigeration Condenser Fan
5.6" Dia. Open Drip Proof
OEM Direct Replacement
Resilient Base with Capacitor
Discount Symbol:
DS-3HAC
Unit Weight:
8.67
lbs
List Price Per Unit:
$356.00
  • Specifications
  • Technical Data
Model_Number
K055PUE1678013B
PRODUCT NAME
.167 HP - - 1550
PHASETYPE
1_PHASE
MOTOR ENCLOSURE
OPAO
HORSEPOWER
.167
KILOWATTS
0.1
POLES
4
NUMBER SPEEDS
1
RPM
1550
HERTZ
50
HERTZ 2
60
VOLTS PRIMARY
208-230
VOLTS
208
VOLTS 2
230
FRME
48
SHAFT CODE
YZ
STATOR DIAMETER
5.5
STACK
0.875
MOUNTING
CRADLE
MOTOR TYPE
FHP
OPPOSITE END BEARING
SELF-ALIGN
SHAFT END BEARING
SELF-ALIGN
AMBIENT
50
ROTATION
CW LEAD END
SERVICE FACTOR
1
RUNCAPMFD
5
RUNCAPVOLTS
370
SHIPPING WEIGHT
9
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
11.76
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
6.221
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
LOCKED ROTOR AMPS
1.53
NEMA NOMINAL EFFICIENCY
58
FULL LOAD AMPS PRIMARY
0.9
K055PUE1678013B
FHPO
V02841580
